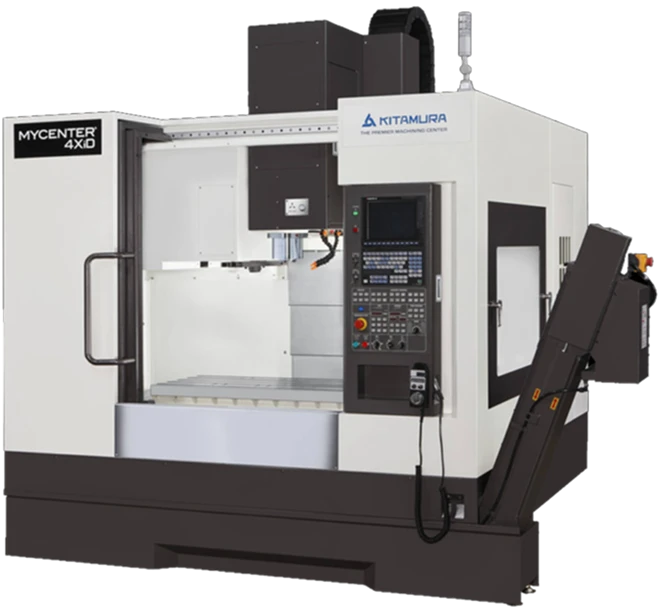

Mycenter-4XiD
Mycenter-4XiD
Vertical Machining Center
Specifications
| Table Size | 500 x 1,120 mm (19.7” x 44.1”) |
|---|---|
| Travel (X, Y, Z) | 1,020 x 510 x 510 mm (40.2” x 20.1” x 20.1”) |
| Spindle Taper | NST No. 40 |
| Spindle Speed | 12,000 rpm (NRG Belt Drive) |
| Tool Storage Capacity | 40 tools |
| Tool Change Time (T-T / C-C) | 3.0 sec / 6.0 sec |
| Rapid Feed Rate (X, Y) | 48 m/min (1,889 ipm) |
| Rapid Feed Rate (Z) | 42 m/min (1,654 ipm) |
| Power Requirement | 25 KVA |
Key Features & Advantages
- Standard 40-tool automatic tool changer for efficient production
- Large work area within a compact machine footprint
- Strong and rigid Meehanite C-frame construction for stability and long life
- Powerful 35 HP, 12,000 rpm NRG belt-driven spindle for consistent performance
- Flexible chip conveyor installation on either the right or left side
- User-friendly Arumatik-Jr. CNC controller with faster processing for smoother machining
