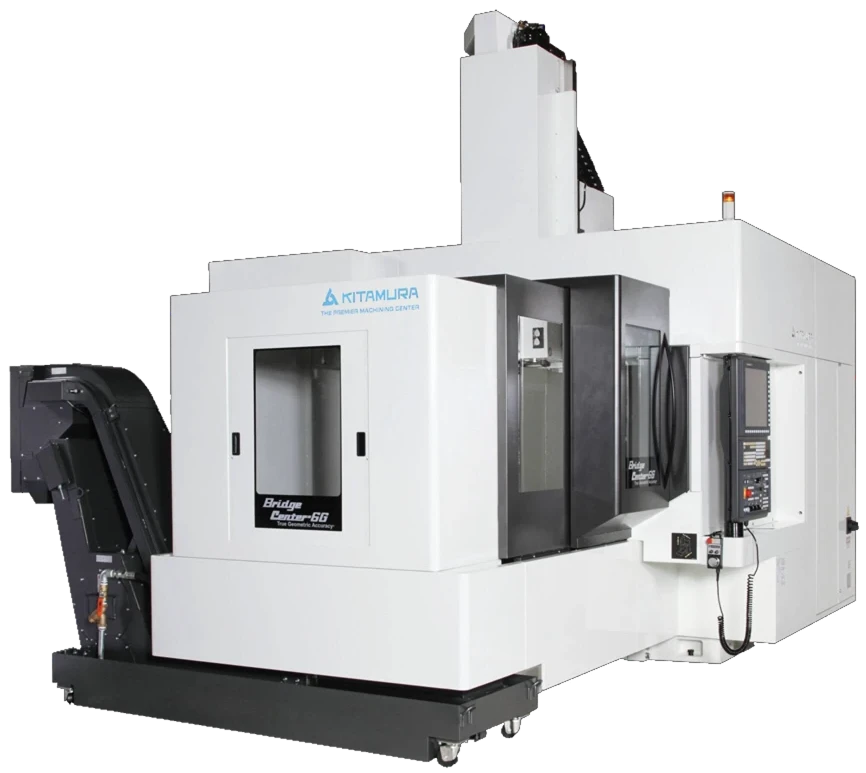

Bridgecenter-6G #40
Bridgecenter-6G #40
Double Column Machining Center
Specifications
| Table Size | 900 x 1,800 mm (35.4” x 70.9”) |
|---|---|
| Travel (X, Y, Z) | 1,530 x 1,095 x 710 mm (60.2” x 43.1” x 28.0”) |
| Spindle Taper | NST No. 40 |
| Spindle Speed | 20 – 20,000 rpm (Gear Drive, 4-Step) |
| Tool Storage Capacity | 40 tools (Optional: 60 / 80 tools) |
| Tool Change Time (T-T / C-C) | 6.6 sec / 12 sec |
| Rapid Feed Rate (X, Y, Z) | 24 m/min (945 ipm) |
| Power Requirement | 35 KVA |
Key Features & Advantages
- Ideal for heavy cutting applications and high-precision die & mold machining
- High accuracy with positioning of ±0.000078” and repeatability of ±0.000039”
- Strong Meehanite cast iron construction with induction-hardened solid box ways for long-term durability
- High-speed, heavy-duty 20,000 rpm geared dual-contact spindle for demanding operations
- Double column structure provides excellent rigidity and a large working area
- Linear scale feedback on X, Y, and Z axes for improved accuracy
- Compact design with a space-saving footprint of just 166 sq. ft.
- High table load capacity of up to 6,600 lbs
