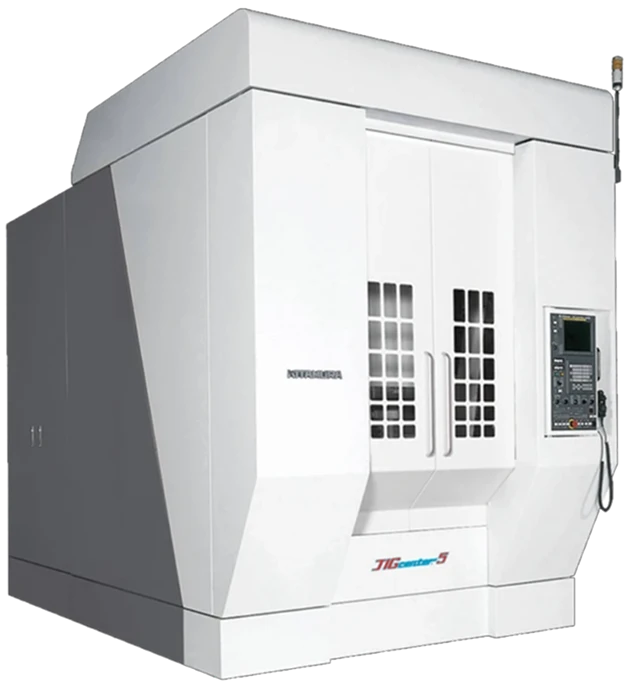

Jigcenter-5
Jigcenter-5
Double Column Machining Center
Specifications
| Table Size | 780 x 1,200 mm (30.7” x 47.2”) |
|---|---|
| Travel (X, Y, Z) | 815 x 745 x 500 mm (32” x 29.3” x 19.7”) |
| Spindle Taper | NST No. 40 |
| Spindle Speed | 20 – 20,000 rpm (Geared Spindle) |
| Tool Storage Capacity | 50 tools (Optional: 100 tools) |
| Tool Change Time (T-T / C-C) | 2.5 sec / 5.0 sec |
| Rapid Feed Rate (X, Y, Z) | 25 m/min (984 ipm) |
| Power Requirement | 35 KVA |
Key Features & Advantages
- Designed for ultra-high precision simultaneous 3-axis machining
- Exceptional accuracy with positioning of ±0.000039” and repeatability of ±0.00002”
- High-speed, high-torque 20,000 rpm geared spindle for versatile machining
- Sliding overhead door design for easy loading and unloading of workpieces
- Standard high-pressure (220 psi) through-spindle coolant system for efficient cutting
- Double-decker chip conveyor and filtration system for improved maintenance
- Linear scale feedback on all axes for superior accuracy and control
- Built with high-grade Meehanite cast iron and solid box ways for maximum rigidity
