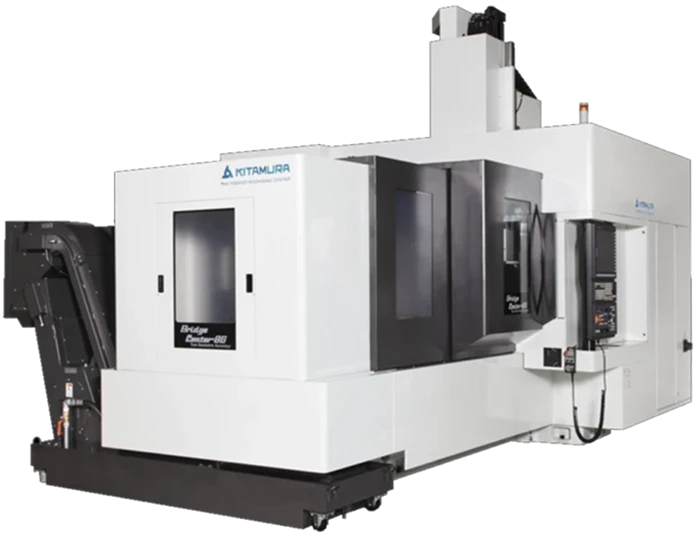

Bridgecenter-8G #50
Bridgecenter-8G #50
Double Column Machining Center
Specifications
| Table Size | 900 x 2,500 mm (35.4” x 98.4”) |
|---|---|
| Travel (X, Y, Z) | 3,032 x 1,095 x 710 mm (80.0” x 43.1” x 28.0”) |
| Spindle Taper | NST No. 50 |
| Spindle Speed | 35 – 12,000 rpm (Gear Drive, 4-Step) |
| Tool Storage Capacity | 40 tools (Optional: 60 / 80 tools) |
| Tool Change Time (T-T / C-C) | 6.6 sec / 12 sec |
| Rapid Feed Rate (X, Y, Z) | 24 m/min (945 ipm) |
| Power Requirement | 45 KVA |
Key Features & Advantages
- Designed for heavy-duty machining with high precision and stability
- Ideal for die and mold applications requiring accuracy and consistent performance
- High accuracy with positioning of ±0.000078” and repeatability of ±0.000039”
- Strong Meehanite cast iron construction with induction-hardened solid box ways for durability
- High-speed, high-torque 12,000 rpm gear-driven dual-contact spindle (#50 taper)
- Double column design with patented triangular crossbeam for superior rigidity over C-frame machines
- Linear scale feedback on X, Y, and Z axes for enhanced machining accuracy
- Compact, space-saving design for efficient shop floor utilization
- High table load capacity of up to 7,700 lbs for machining larger and heavier components
