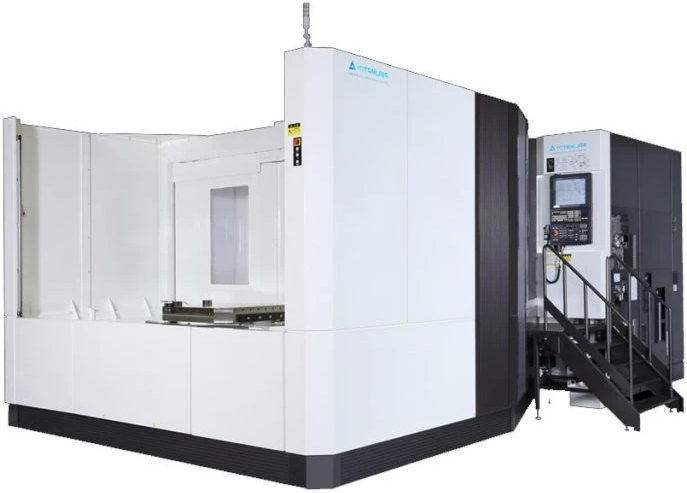

Mycenter-HX1000G / HX1250G
Mycenter-HX1000G / HX1250G
Heavy Duty Horizontal Machining Center
Specifications
| Table Size |
1,000 x 1,000 mm (39.37” x 39.37”) 1,250 x 1,250 mm (49.2” x 49.2”) HX1250G |
|---|---|
| Travel (X, Y, Z) | 2,040 x 1,320 x 1,370 mm (80.31” x 51.97” x 53.94”) |
| Spindle Taper | NST No. 50 |
| Spindle Speed | 20 – 8,000 rpm (Optional: 35 – 12,000 rpm, Gear Drive – 4 Step) |
| Tool Storage Capacity | 150 tools (Optional: 200 tools) |
| Tool Change Time (T-T / C-C) | 3.0 sec / 7.0 sec |
| Rapid Feed Rate (X, Y, Z) | 36 m/min (1,417 ipm) |
| Power Requirement | 80 KVA |
Key Features & Advantages
- Heavy-duty solid box way design combined with high-grade Meehanite cast construction for maximum rigidity
- High precision with positioning accuracy of ±0.000078” and repeatability of ±0.000039”
- Linear scale feedback on X, Y, and Z axes for improved accuracy and stability
- Full 4th axis rotary table with high-resolution scale for complex machining
- Large work capacity supporting workpieces up to 80.71” diameter and 61.02” height, with table load capacity above 6,600 lbs
- Patented twin ballscrew and twin servo motor drive system for smooth, powerful axis movement
- Flexible design with the option to add a 5th axis in the field as production needs grow
