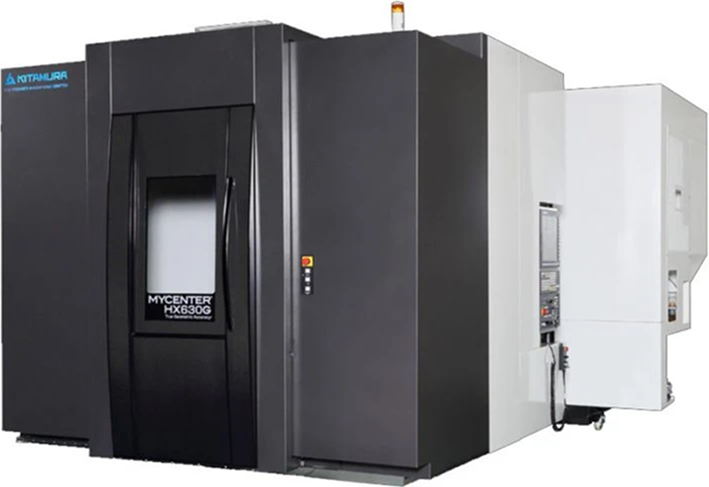

Mycenter-HX630G / 800
Mycenter-HX630G / 800
Horizontal Machining Center
Specifications
| Table Size | 630 x 630 mm (24.8” x 24.8”) |
|---|---|
| Travel (X, Y, Z) | 1,100 x 920 x 1,050 mm (43.3” x 36.2” x 41.3”) |
| Spindle Taper | NST No. 50 |
| Spindle Speed | 35 – 12,000 rpm (Optional: 8,000 rpm, Gear Drive – 4 Step) |
| Tool Storage Capacity | 62 tools (Optional: 122 / 162 / 212 tools) |
| Tool Change Time (T-T / C-C) | 2.1 sec / 5.2 sec |
| Rapid Feed Rate (X, Y, Z) | 60 m/min (2,362 ipm) |
| Rapid Feed Rate (B-Axis) | 12,000°/min (33.3 rpm) |
| Power Requirement | 65 KVA |
Key Features & Advantages
- Powerful 12,000 rpm geared spindle (optional 8,000 rpm) with high speed and torque; HSK-A100 spindle available
- High precision with positioning accuracy of ±0.000078” and repeatability of ±0.000039”
- Strong and stable structure with solid box ways, linear scales on all axes, and twin ballscrews on X, Y, and Z axes
- Full 4th axis rotary table for complete 360° machining capability
- Ultra-fast rapid feed rates up to 2,362 ipm for improved productivity
- Standard 2-station pallet changer, expandable with additional pallets and pallet pool systems
- Larger work envelope and extended travel compared to similar machines
- Option to upgrade to 800 mm tables later as production needs grow
