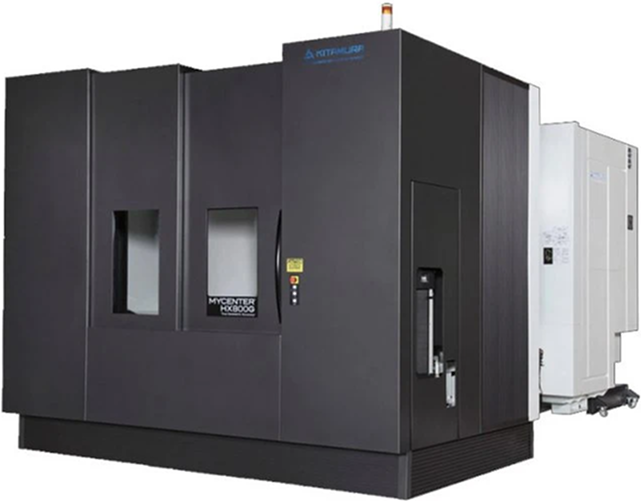

Mycenter-HX800G / 1000
Mycenter-HX800G / 1000
Heavy Duty Horizontal Machining Center
Specifications
| Table Size | 800 x 800 mm (31.5” x 31.5”) |
|---|---|
| Travel (X, Y, Z) | 1,550 x 1,300 x 1,400 mm (61.0” x 51.2” x 55.1”) |
| Spindle Taper | NST No. 50 |
| Spindle Speed | 35 – 12,000 rpm (Optional: 8,000 rpm, Gear Drive – 4 Step) |
| Tool Storage Capacity | 62 tools (Optional: 122 / 162 / 212 tools) |
| Tool Change Time (T-T / C-C) | 2.1 sec / 5.9 sec |
| Rapid Feed Rate (X, Y, Z) | 60 m/min (2,362 ipm) |
| Rapid Feed Rate (B-Axis) | 9,000°/min (25 rpm) |
| Power Requirement | 70 KVA |
Key Features & Advantages
- Powerful 12,000 rpm geared spindle (optional 8,000 rpm) with high torque; optional HSK-A100 spindle available
- High precision with positioning accuracy of ±0.000078” and repeatability of ±0.000039”
- Heavy-duty construction with solid box ways, linear scales on all axes, and twin ballscrews on X, Y, and Z axes
- Full 4th axis rotary table for complete 360° machining capability
- Ultra-fast rapid feed rates up to 2,362 ipm for high productivity
- Standard 2-station pallet changer, expandable with additional pallets and pallet pool systems
- Large work envelope and extended travel, ideal for heavy and complex components
