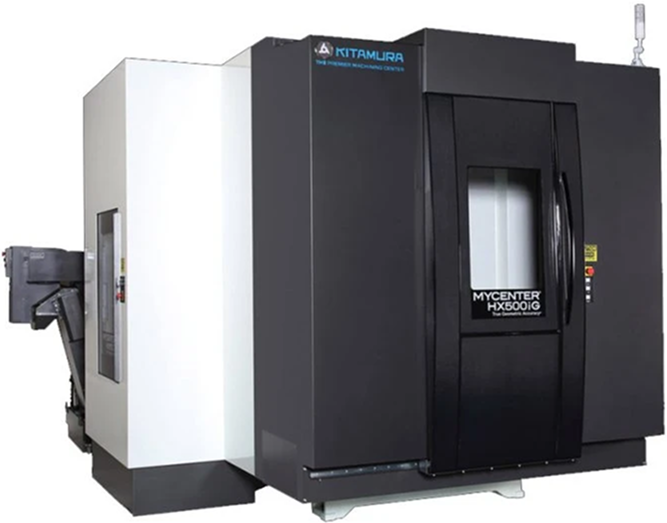

Mycenter-HX500iG / 630 #40
Mycenter-HX500iG / 630 #40
Horizontal Machining Center
Specifications
| Table Size | 500 x 500 mm (19.7” x 19.7”) |
|---|---|
| Travel (X, Y, Z) | 870 x 800 x 930 mm (34.3” x 31.5” x 36.6”) |
| Spindle Taper | NST No. 40 |
| Spindle Speed | 20 – 20,000 rpm (Gear Drive, 4-Step) |
| Tool Storage Capacity | 50 tools (Optional: 100 / 150 / 200 tools) |
| Tool Change Time (T-T / C-C) | 1.3 sec / 3.8 sec |
| Rapid Feed Rate (X, Y, Z) | 60 m/min (2,362 ipm) |
| Rapid Feed Rate (B-Axis) | 43,200°/min (120 rpm) |
| Power Requirement | 55 KVA |
Key Features & Advantages
- Multiple spindle options available, including #40, #50, and optional HSK-A63, to suit different machining needs
- Very high accuracy with consistent repeatability for precise results
- Strong and stable machine structure with solid box ways and linear scales on all axes
- Twin ballscrew design on X and Y axes for smooth and accurate movement
- High-speed 4th axis rotary table for faster and efficient machining
- Fast rapid feed rates to improve productivity and reduce machining time
- Comes with a 2-station pallet changer, with options to expand for higher output
- Large working area and extended travel for handling bigger and complex parts
- Option to upgrade to 630 mm tables later as your production needs grow
