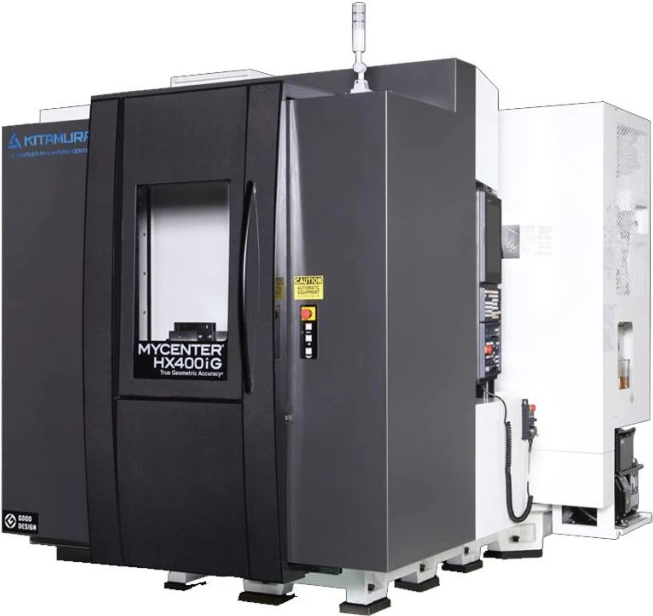

Mycenter-HX400iG / 500
Mycenter-HX400iG / 500
Horizontal Machining Center
Specifications
| Table Size | 15.75” x 15.75” (400 x 400mm) |
|---|---|
| Travel (X, Y, Z) | 24” x 24” x 24” (610 x 610 x 610mm) |
| Spindle Taper | NST No. 40 |
| Spindle Speed | 40~15,000rpm (20,000rpm Opt.) |
| Tool Storage Capacity | 50 Pcs. (100,150,200,300 Opt.) |
| Tool Change Time (T-T/C-C) | 1.3 sec. /2.5 sec. |
| Rapid Feed (X,Y,Z) | 2,362ipm (60m/min) |
| Rapid Feed (B) | 45,000deg./min. (125rpm) |
| Power Requirement | 50KVA |
Key Features & Advantages
- High-precision linear scale feedback system with fine-pitch, high-resolution ballscrews
- Exceptional positioning accuracy of ±0.000078” with repeatability of ±0.000039”
- Expandable 2-station rotating pallet system for improved productivity
- Full 4th axis rotary table with integral motor, delivering high-speed performance up to 125 rpm (45,000°/min)
- Rigid Meehanite cast iron construction with solid box ways for superior stability and durability
- Ultra-fast rapid feed rates up to 2,362 ipm for enhanced machining efficiency
- High-speed 15,000 rpm direct-driven dual-contact spindle (optional 20,000 rpm upgrade available)
- SSS (Super Smooth Surface) control for precise contouring and mold applications
- Field-expandable option to upgrade to 500 mm tables for greater flexibility
