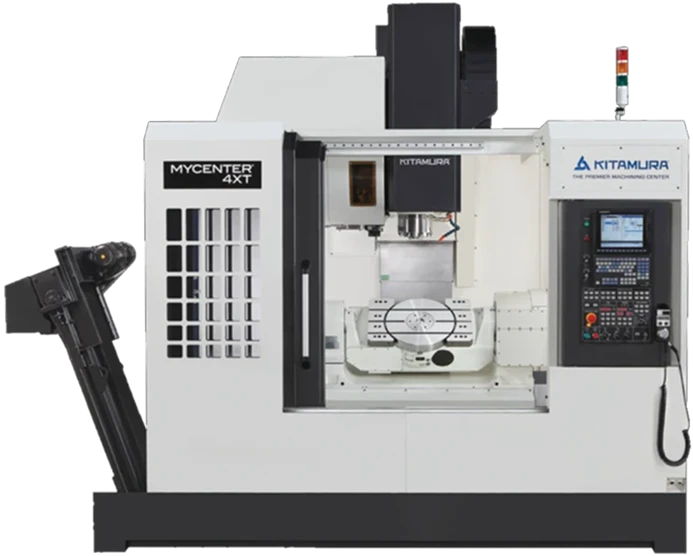

Mycenter-4XT
Mycenter-4XT
5-Axis Machining Center
Specifications
| Table Size |
400 mm diameter (15.75”) With Full Table Length: 365 x 600 mm (14.37” x 23.62”) |
|---|---|
| Travel (X, Y, Z) | 800 x 610 x 510 mm (31.50” x 24.02” x 20.08”) |
| Spindle Taper | NST No. 40 |
| Spindle Speed | 15,000 rpm |
| Tool Storage Capacity | 30 tools |
| Tool Change Time (T-T / C-C) | 2.5 sec / 7.0 sec |
| Rapid Feed Rate (X, Y, Z) | 36 m/min (1,417 ipm) |
| Power Requirement | 35 KVA |
Key Features & Advantages
- Built-in 4th and 5th axis trunnion table for full 5-axis machining capability
- Rigid box guideways with a unique 4-slideway base design for maximum stability
- High-speed rapid movements to improve productivity and reduce cycle time
- Powerful 35 HP, 15,000 rpm dual-contact spindle for high-performance machining
- Equipped with base wash system, internal chip augers, and scraper-type chip conveyor
- Ready for through-spindle coolant with optional high-pressure configurations
- Compact, feature-rich machine offering strong performance at a competitive price
