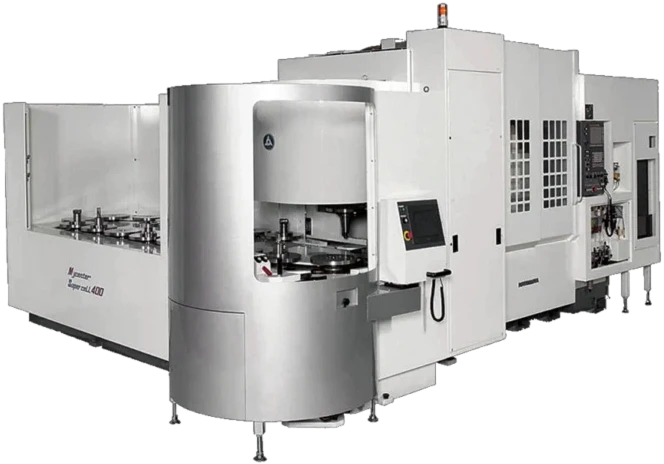

Supercell-400G
Supercell-400G
5-Axis Machining Center
Specifications
| Table Size | 350 mm round (13.8”) |
|---|---|
| Travel (X, Y, Z) | 510 x 510 x 510 mm (20.1” x 20.1” x 20.1”) |
| Travel (A, B) | -120° to +30° / 0° to 360° |
| Spindle Taper | NST No. 40 |
| Spindle Speed | 20 – 20,000 rpm |
| Tool Storage Capacity | 140 tools (Optional: 190 / 290 tools) |
| Tool Change Time (T-T / C-C) | 2.1 sec / 5.0 sec |
| Rapid Feed Rate (X, Y, Z) | 50 m/min (1,969 ipm) |
| Rapid Feed (A, B) | 2,400 deg/min (6.7 rpm) / 12,000 deg/min (33.3 rpm) |
| Power Requirement | 45 KVA |
Key Features & Advantages
- Horizontal 5-axis configuration for single setup and efficient unmanned machining
- Ultra-high precision with positioning accuracy of ±0.000039” and repeatability of ±0.00002”
- Ideal for both one-off jobs and high-volume production environments
- Standard 20-station automatic pallet changer with loading/unloading station, expandable up to 120 pallets
- Strong Meehanite cast iron construction with solid box ways for maximum rigidity
- High-performance 20,000 rpm gear-driven dual-contact spindle for powerful and stable machining
- Energy-efficient design with high-speed performance
- Advanced work handling system reduces loading and unloading time for improved productivity
