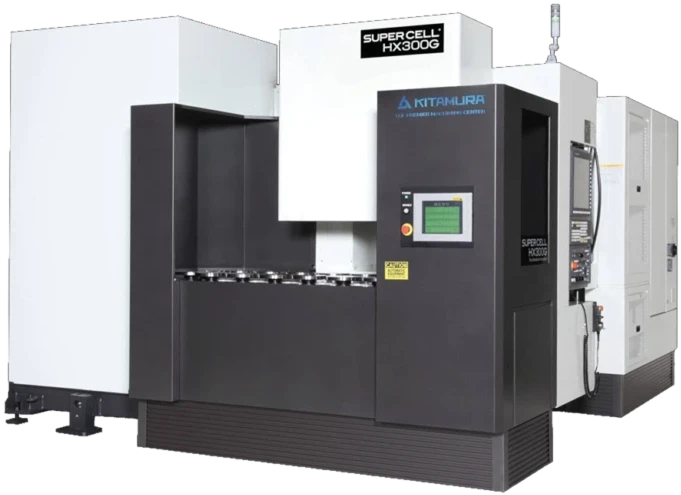

Supercell-300G
Supercell-300G
5-Axis Machining Center
Specifications
| Table Size | 200 mm round (7.9”) |
|---|---|
| Travel (X, Y, Z) | 460 x 510 x 460 mm (18.1” x 20.1” x 18.1”) |
| Travel (A, B) | -120° to +30° / 0° to 360° |
| Spindle Taper | NST No. 40 |
| Spindle Speed | 200 – 20,000 rpm |
| Tool Storage Capacity | 174 tools (Optional: 230 / 258 / 314 – Matrix Style) |
| Tool Change Time (T-T / C-C) | 1.3 sec / 2.5 sec |
| Rapid Feed Rate (X, Y, Z) | 60 m/min (2,362 ipm) |
| Rapid Feed (A, B) | 18,000 deg/min (50 rpm) |
| Power Requirement | 55 KVA |
Key Features & Advantages
- Horizontal 5-axis configuration enables single setup and unmanned machining
- Ultra-high precision with positioning of ±0.000079” and repeatability of ±0.000039”
- Ideal for both one-off production and high-volume manufacturing
- Standard 20-station automatic pallet changer, expandable up to 80 pallets
- High-speed 20,000 rpm dual-contact spindle for fast and efficient machining
- Robust Meehanite cast iron construction with heavy-duty linear guideways
- Advanced work handling system reduces pallet loading and unloading time
- Supports just-in-time manufacturing for improved productivity and efficiency
