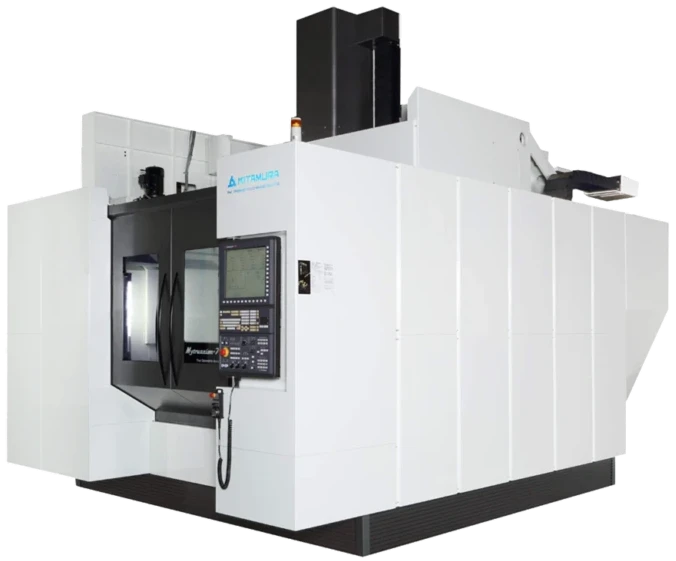

Mytrunnion-7G
Mytrunnion-7G
5-Axis Machining Center
Specifications
| Table Size | 1,000 mm round diameter (39.7”) |
|---|---|
| Travel (X, Y, Z) | 1,190 x 1,380 x 765 mm (46.9” x 54.3” x 30.1”) |
| Travel (A, C) | -120° to +30° / 0° to 360° |
| Spindle Taper | NST No. 50 |
| Spindle Speed | 35 – 12,000 rpm (Optional: 8,000 rpm, Gear Drive – 4 Step) |
| Tool Storage Capacity | 100 tools |
| Tool Change Time (T-T / C-C) | 3.3 sec / 9.7 sec |
| Rapid Feed Rate (X, Y) | 50 m/min (1,969 ipm) |
| Rapid Feed Rate (Z) | 30 m/min (1,181 ipm) |
| Power Requirement | 65 KVA |
Key Features & Advantages
- Advanced 5-axis horizontal machining center designed for large and complex components
- Ideal for aerospace and high-precision industrial applications
- Full 5-axis simultaneous machining capability for complex geometries
- High accuracy with positioning of ±0.000079” and repeatability of ±0.000039”
- Powerful #50 taper, 12,000 rpm gear-driven dual-contact spindle for high output
- Linear scale feedback on all axes for superior precision and control
- Zero-backlash roller cam system for smooth and accurate 4th and 5th axis movement
- High rapid feed rates for faster machining and improved productivity
- Built with high-grade Meehanite cast iron for excellent vibration damping and surface finish
