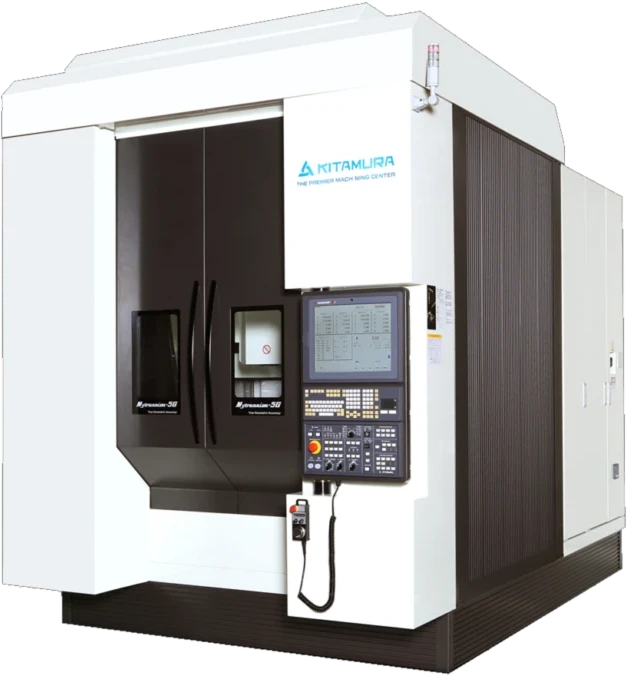

Mytrunnion-5G
Mytrunnion-5G
5-Axis Machining Center
Specifications
| Table Size | 630 mm round diameter (24.8”) |
|---|---|
| Travel (X, Y, Z) | 815 x 745 x 500 mm (32” x 29.3” x 19.7”) |
| Travel (A, C) | -120° to +30° / 0° to 360° |
| Spindle Taper | NST No. 40 |
| Spindle Speed | 20 – 20,000 rpm |
| Tool Storage Capacity | 50 tools (Optional: 100 tools) |
| Tool Change Time (T-T / C-C) | 2.5 sec / 5.0 sec |
| Rapid Feed Rate (X, Y) | 50 m/min (1,969 ipm) |
| Rapid Feed Rate (Z) | 25 m/min (984 ipm) |
| Rapid Feed (A, C) | 2,000 deg/min / 6,000 deg/min |
| Power Requirement | 45 KVA |
Key Features & Advantages
- Designed for ultra-high precision simultaneous 5-axis machining
- Exceptional accuracy with positioning of ±0.000039” and repeatability of ±0.00002”
- High-speed, high-torque geared spindle (up to 20,000 rpm) for versatile machining
- Linear scale feedback on all axes with rotary scales on A & C axes for superior control
- Strong Meehanite cast iron construction with solid box ways for maximum rigidity
- Sliding overhead door design for easy loading and unloading
- Ideal for complex parts requiring multi-angle machining with high precision
