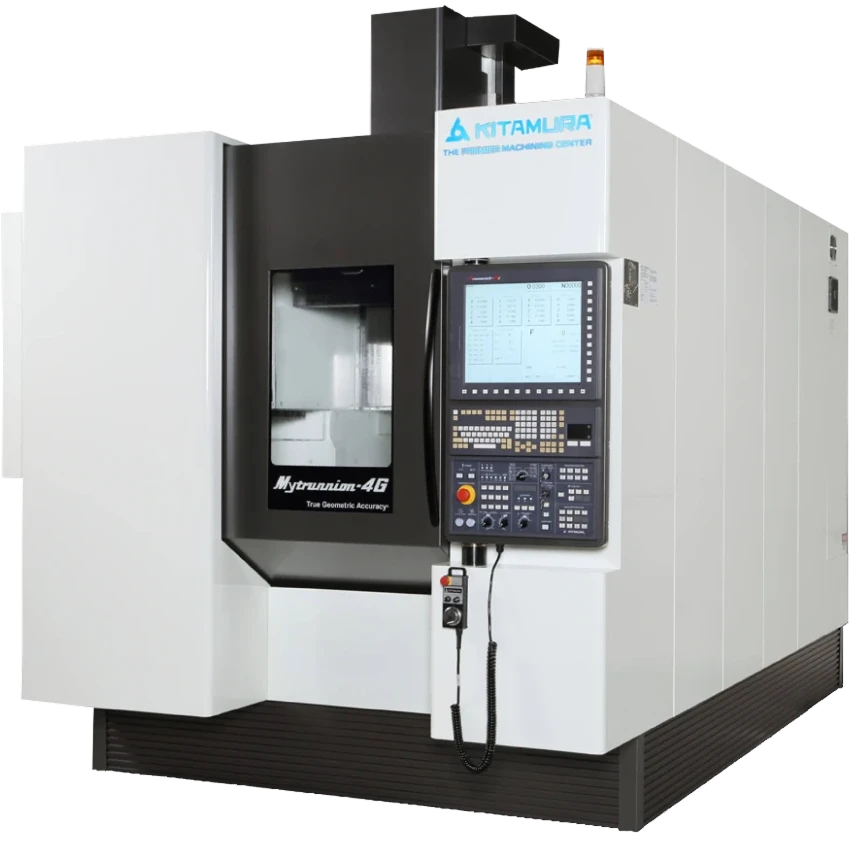

Mytrunnion-4G

5-Axis Machining Center

Specifications

Table Size 400 mm round diameter (15.7”)
Travel (X, Y, Z) 610 x 610 x 500 mm (24” x 24” x 19.7”)
Travel (A, C) -120° to +30° / 0° to 360°
Spindle Taper NST No. 40
Spindle Speed 40 – 15,000 rpm
Tool Storage Capacity 60 tools (Optional: 100 tools)
Tool Change Time (T-T / C-C) 2.2 sec / 5.8 sec
Rapid Feed Rate (X, Y) 50 m/min (1,969 ipm)
Rapid Feed Rate (Z) 25 m/min (985 ipm)
Rapid Feed (A, C) 18,000 deg/min (50 rpm)
Power Requirement 45 KVA

Key Features & Advantages

  • Designed for ultra-high precision simultaneous 5-axis machining
  • High accuracy with positioning of ±0.000079” and repeatability of ±0.000039”
  • Powerful 15,000 rpm direct-drive dual-contact spindle for high-performance cutting
  • Optional HSK-A63 spindle configuration for advanced applications
  • Highly rigid roller gear cam table for superior performance in 4th and 5th axes
  • Large working envelope (550 mm dia x 400 mm height) for greater machining flexibility
  • Sliding overhead door design for easy loading and unloading
